Brush Pattern Film Laminated Steel Coil / Sheet

Position: Home > Brush Pattern Film Laminated Steel Coil / Sheet

Brush Pattern Film Laminated Steel Coil / Sheet
产品型号：
产品产地：
发布日期：2021-03-27
浏览次数：次
  • 详细资料
  • 规格参数
  • 包装

Brush Pattern Film Laminated Steel Coils/Sheets for Home Appliance Such as Refrigerator, Freezer, Washer and Air Conditioner.

  • ITEM NO.:

    QH-VCM-190912-4

  • PAYMENT:

    T/T, L/C, Western Union

  • PRICE:

    $1300/Ton

  • PRODUCT ORIGIN:

    China

  • COLOR:

    Customized

  • MIN ORDER:

    20 Tons

  • SHIPPING PORT:

    Any port in China

  • LEAD TIME:

    20-30 days


Brush Pattern Film Laminated Steel Coil / Sheet for Refrigerator

1. Production Specifications:


Product ItemFilm Laminated Steel Sheet
Base MetalSGCC, SPCC, DX51D, DX52D, DX53D, DX54D
Thickness0.2-1.0mm (standard 0.3-0.8mm)
Width Size500-1600mm (standard 600-1250mm)
Length Size5800mm (max), as per request
Surface CoatingPVC, PET Film Laminated
Back CoatingEpoxy
Color RangeMono Color, Wooden, Marble, Flower, Brushed Pattern etc.
Film Thickness50-200μm,  as per request
Back Coating Thickness5~7μm, as per request
Surface ProtectionPE protective film
CertificateISO9001, SGS, ROHS
Pencil Hardness≥H
T-Bend Test≤2T
E-Cupping Test8mm
MEK Test More than 100 times
Impact TestNo cracking and peeling(50kg/cm)
Color Difference△E<0.5
Coil Weight3~5 Tons/ coil, as per request
PackageCoil or Sheet
Sheet: Width≤1600mm,Length≤6000mm
Coil: Width≤1600mm ,Inner Diameter: φ405mm φ505 etc
ApplicationRefrigerator, Wash machine, Water heater, Freezer, DVD, TV etc


Brush Pattern Film Laminated Steel Coil / Sheet for Refrigerator

Brush Pattern Film Laminated Steel Coil / Sheet for Refrigerator

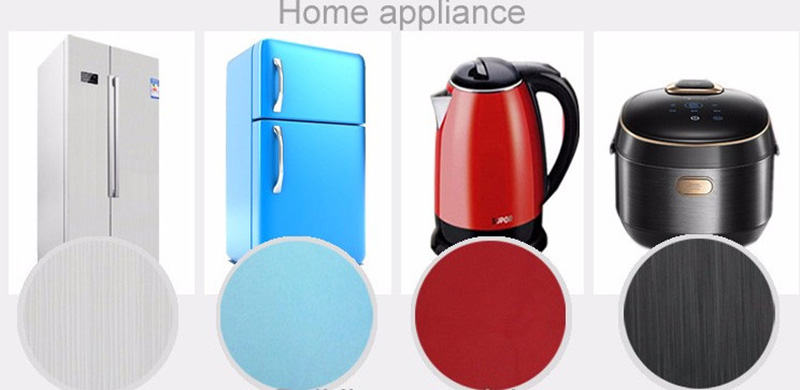

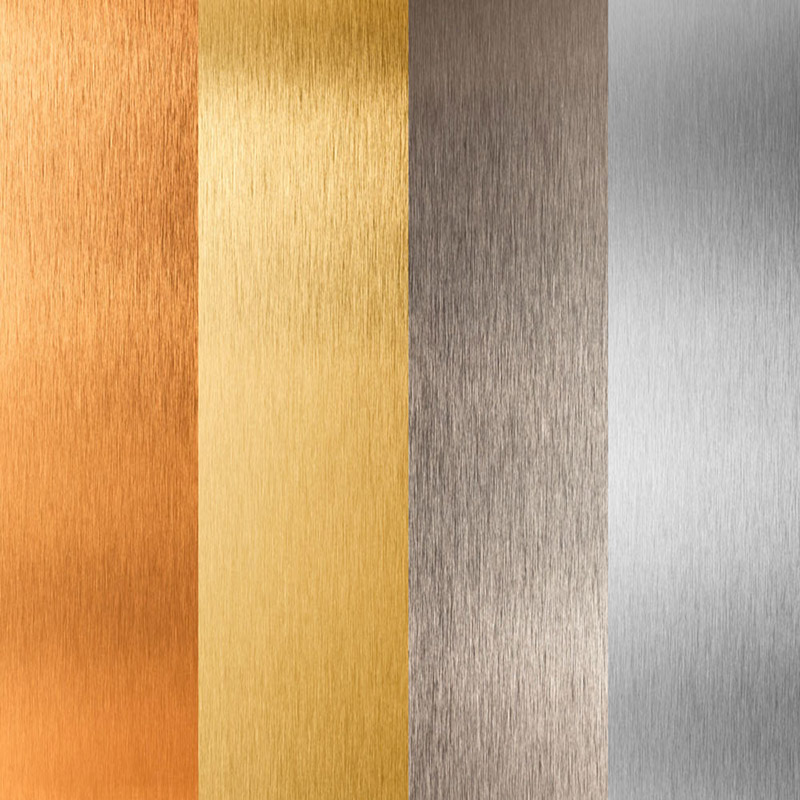

2. Product Picture:

Brush Pattern Film Laminated Steel Coil / Sheet for Refrigerator

3.Company Profile:
"Alucosuper" is our brand.We are JINGGONG STEEL BUILDING GROUP (alucosuper.en.made-in-china.com), - WONDERFUL-WALL BUSINESS DIVISION.
Products are widely used for building material(indoor, outdoor, roofing, ceiling, door), package, home appliance(refrigerator, freezer, wash machine, water-heater, TV, etc.), advertisement, station...and anyother area.

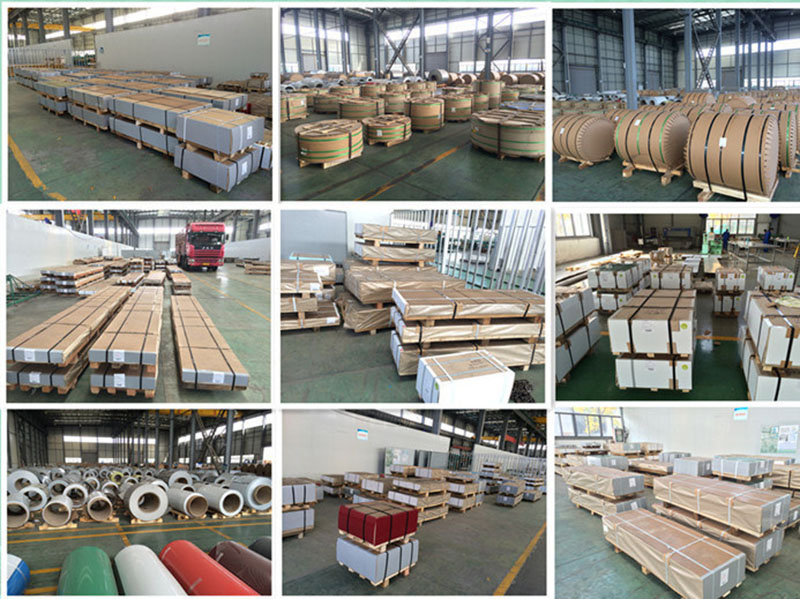

4.Packing Pictures:

Anhui Wonderful-wall Color Coating Aluminium Science Technology Co., Ltd.
