PPGI PPGL Prepainted Galvanized Steel Coil for Roofing System1
1.Product Description:1
Alucosuper pre-painted galvanized/galvalume steel coils is a kind of high-level steel product which has good weather-resistant and fade-resistant. PE and PVDF coating coils mainly based on coating and baking.It has distinct advantage on shortening construction period, reducing maintenance charge and recycling. Compareed with wood, concrete and other building materials, the prepainted steel is provided with distict usability and precessability, it has been one of the main building materail, and used more and more widely.
2.Applications:

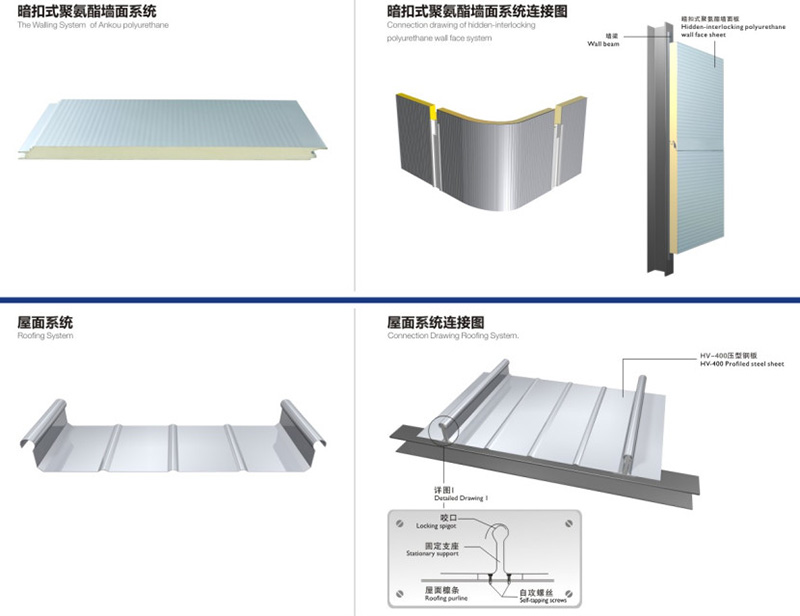

1) Exterior applications such as: Wall cladding, facades, roofs and canopies, tunnels, column covers or renovations
2) Interior applications such as: Wall cladding, ceilings, bathrooms, kitchens and balconies
Product Details:
| Product Item | PPGI PPGL Prepainted Steel Coil |
| Base Metal | SGCC, SPCC, DX51D,DX51D+Z etc |
| Zinc Coating | Z40-275 g/m2 or AZ40-180g/m2 |
| Spangle | Minimized, Regular, Zero |
| Surface Treatment | Oiled, Dry, Passivated, Resin Coated (AFP Anti-finger Print) |
| Thickness | 0.12-1.5mm (standard 0.12-1.5mm) |
| Width Size | 600-1600mm (standard 600-1250mm) |
| Length Size | 6000mm (max), as per request |
| Surface Coating | PE/PVDF/HDP/SMP |
| Back Coating | Primer |
| Color Range | RAL color |
| Top Coating Thickness | 18~25μm, as per request |
| Back Coating Thickness | 5~7μm, as per request |
| Surface Protection | With PE protective film or not |
| Standard | AISI, ASTM, GB, JIS, etc |
| Pencil Hardness | ≥H |
| T-Bend Test | ≤2T |
| E-Cupping Test | 6mm |
| MEK Test | More than 100 times |
| Impact Test | No cracking and peeling(50kg/cm) |
| Color Difference | △E<0.5 |
| Paint Company | PPG Valspar Becker KCC Nippon AkzoNobel |
| Coil Weight | 3~8 Tons/ coil, as per request |
| Package | Coil or Sheet |

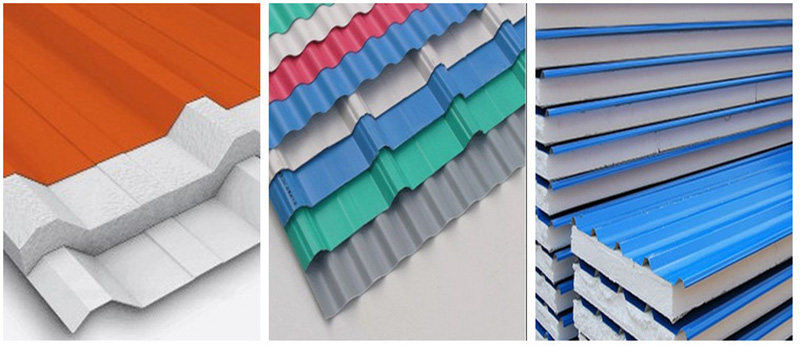

| Application | Roofing, Cladding, Insulation Panel, Sandwich Panel etc |
