PCM PPGI Color Coated Galvanized Steel Coil for Home Appliances
1. Production Description:
PCM: Color coating steel sheet:

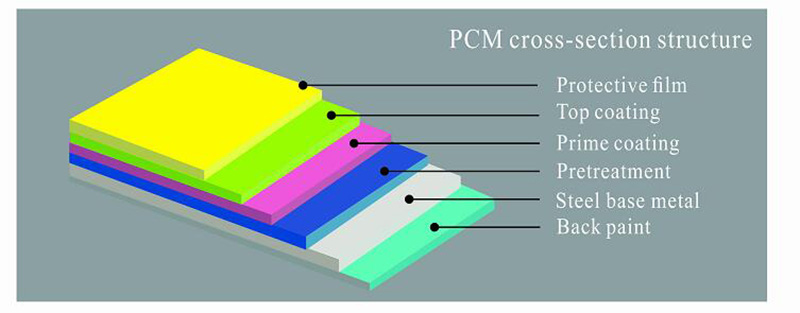

Protective film - finish coating - prime coating - pretreatment - steel coil - back painting.
2. Structure:
3. Application:
| Product Item | PCM Color Coated Steel for Home Appliances |
| Base Metal | SGCC, SPCC, DX51D, DX52D, DX53D (As per the punch, with shaped picture will be better) |
| Thickness | 0.12-1.5mm (standard 0.12-1.5mm) |
| Width Size | 600-1600mm (standard 600-1250mm) |
| Length Size | 6000mm (max), as per request |
| Surface Coating | PE Coating |
| Back Coating | Epoxy |
| Color Range | RAL color (solid,metallic,high gloss), Pure Color, Brushed, Flower style etc. |
| Top Coating Thickness | 18~25μm, as per request |
| Back Coating Thickness | 5~7μm, as per request |
| Surface Protection | PE protective film |
| Certificate | ISO9001, SGS, ROHS |
| Pencil Hardness | ≥H |
| T-Bend Test | ≤2T |
| E-Cupping Test | 6mm |
| MEK Test | More than 100 times |
| Impact Test | No cracking and peeling(50kg/cm) |
| Color Difference | △E<0.5 |
| Paint Company | PPG Valspar Becker KCC Nippon |
| Coil Weight | 3~5 Tons/ coil, as per request |
| Package | Coil or Sheet Sheet: Width≤1600mm,Length≤6000mm Coil: Width≤1600mm ,Inner Diameter: φ405mm φ505 etc |
| Application | Refrigerator, Wash machine, Water heater, Freezer, DVD, TV etc |

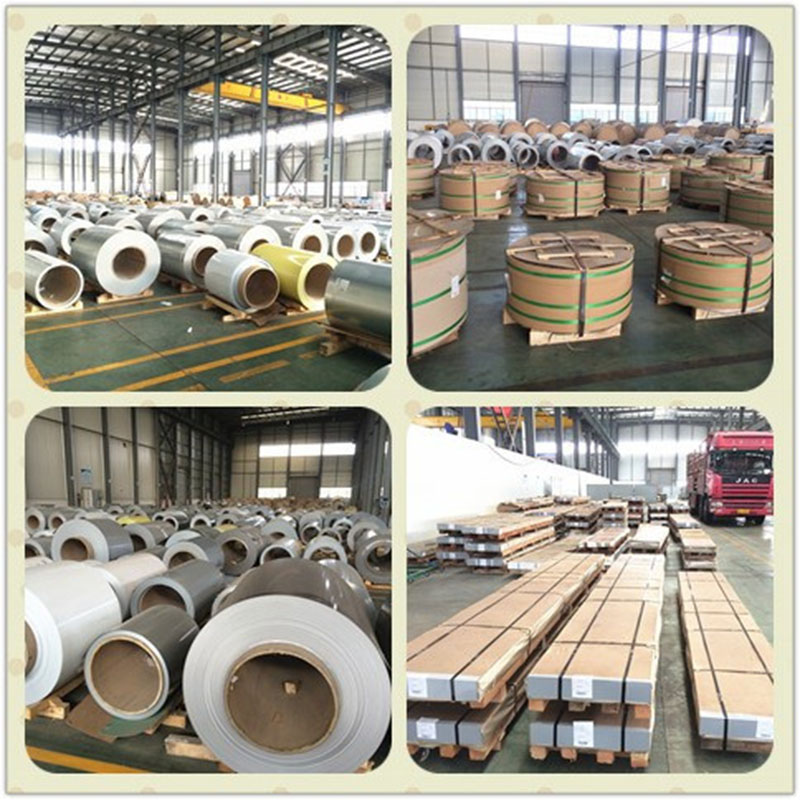

4.Packing & Delivery:
* Standard export waterproof package, Eye to Wall & Eye to Sky for coil, Wooden Cases & Wooden Pallets for sheet.
* Delivery time: within 30 days
