The raw material of aluminium strip is pure aluminium or aluminium alloy .The strip is rolled into thin sheet aluminium coil with different thickness and width by cold rolling mill. According to its use, the strip is longitudinally divided into different width aluminium strips by longitudinal shearing machine.



Classification

The alloy grades of commonly used aluminium strips are 1050, 1060, 1070, 1100, 3003, 3004, 5005, 5052, 8011, etc. Common states are O and H states.


CommodityAlloyTemperThickness(mm)Width(mm)ID(mm)

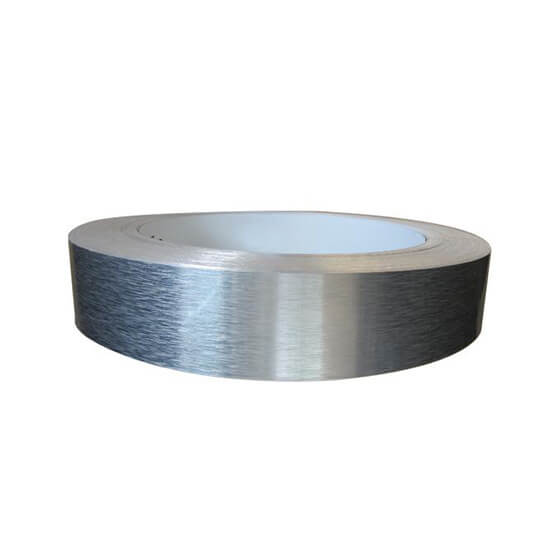

Mill Finish Aluminum Strip

1050/1060/10701100/3003/30043105/5005/5052/5754/8011

O,H12,H14,H16,H18H22,H24,

H26

0.2-4.0

10-200

76,152,305,405505

Aluminum Single Edge Strids

1060

H24

0.2-2

30-90

Coil

Aluminum Spacer Strip

1050/10601100/3003

H18, H19, H22,H24, H26

0.15-0.5

10-150

305,405,505

Aluminum Transformer Strip

1060/1070

O

0.1-4.0

20-1500

405,505

Remarks : Special specifications need to be customized according to requirements.
